Anti Corrosion Bi-spectrum Network Bullet Camera
+ KDV
Anti Corrosion Bi-spectrum Network Bullet Camera
New

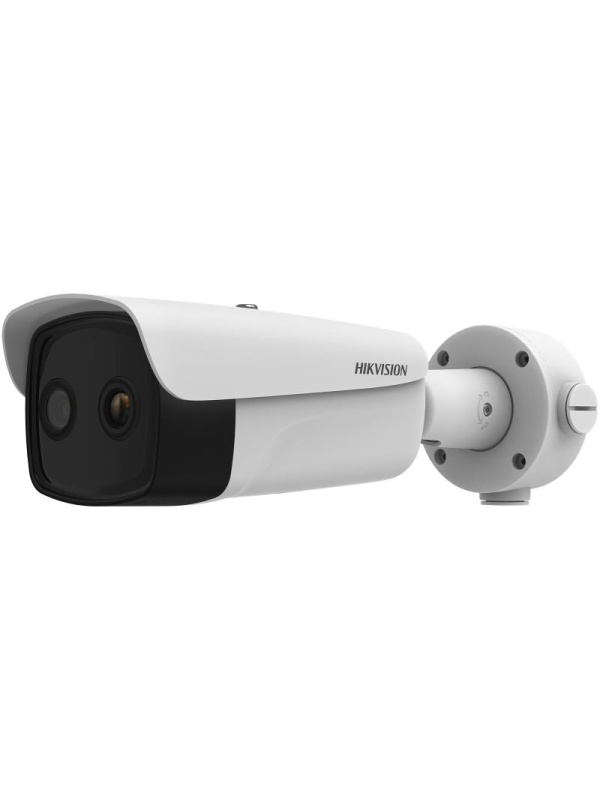

Hikvision Anti Corrosion Bi-spectrum Network Bullet Camera
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Video content analysis: vehicle/person classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (- 4°F to 302°F), ± 8°C (± 14.4°F)
- Smoking Detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality and 10-year warranty detector
DS-2TD2637-10-QY| Camera Features | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Lens | 9.7mm/4mm |
| Aralık | F1.0/F1.6 |
| Shutter Speed | 1 s to 1/100,000 s |
| WDR | 120dB |
| Camera | |
| Camera Type | Bullet |
| Digital Zoom | × 2, × 4 |
| Spectral Range | 8 μm to 14 μm |
| Network | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP, SSL |
| Image | |
| Resolution | 384 × 288 2688 × 1520 |
| Video Compression | |
| Video Compression Format | H.265/H.264/MJPEG |
| Interface Unit | |
| Audio Compression Format | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Audio In / Out | 1/1 |
| Alarm Input/ Output | 2/2 |
| General Features | |
| Lighting Range | 30m |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%,24 VDC |
| Security | User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE802.1x access control, IP address filtering |
| Power Consumption | 24 VAC ± 25%: 0.8 A to 0.5 A, Max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, Max. 9 W 24 VDC: 0.4 A, Max. 9.5 W |
| Protection Standard | IP67,TVS 4000V,IK10 |
| Operating Temperature | -40°C to 65°C |
| Dimension | 376.1mm × 119.1mm × 118.1mm |
| Weight | 1.82kg |
| Pixel Pitch | 17 μm |
| Analog Output | 1.0 V [p-p]/75 Ω, PAL/NTSC/BNC |
